Engine Cycles
Watch the four strokes, the valves and the spark, and see the cycle on a pressure-volume diagram
Stroke
Engine Cycles is part of lifetime access
Log in if you already have lifetime access, or unlock all 39 simulators, the full question bank and every flashcard for ₹3,499.
Or try the free ones: Wind Triangle and Altimeter.
Your account is on the free plan. Unlock all 39 simulators, the full question bank and every flashcard for ₹3,499, once.
Practise the questions
Powerplant79 questionsEngine Instruments29 questionsTemperature Indicators34 questionsFuel Systems35 questionsRevise with flashcards
Powerplant18 cardsEngine Instruments2 cardsTemperature Indicators2 cardsFuel Systems2 cardsMore Technical General simulators
Brayton CycleLifetimeAttitude & TurnLifetimeGPWS / TAWSLifetimeTCASLifetimeWhat to try

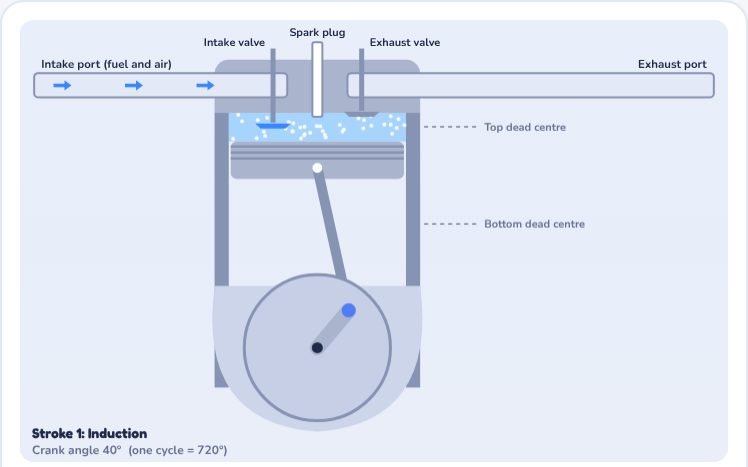

- Press Play and follow one full 720 degree cycle: induction, compression, power and exhaust.
- Watch the valves, and see when both are open around TDC at the end of exhaust.
- Move the ignition slider to see why the spark is timed before TDC.
- Switch the lower graph to the valve timing ring.
Exam point
Four strokes, two crankshaft revolutions, one power stroke per cylinder per cycle. Ignition happens before TDC and the exhaust valve opens before BDC. Efficiency rises with compression ratio, but a high ratio and over-advanced ignition cause detonation.
